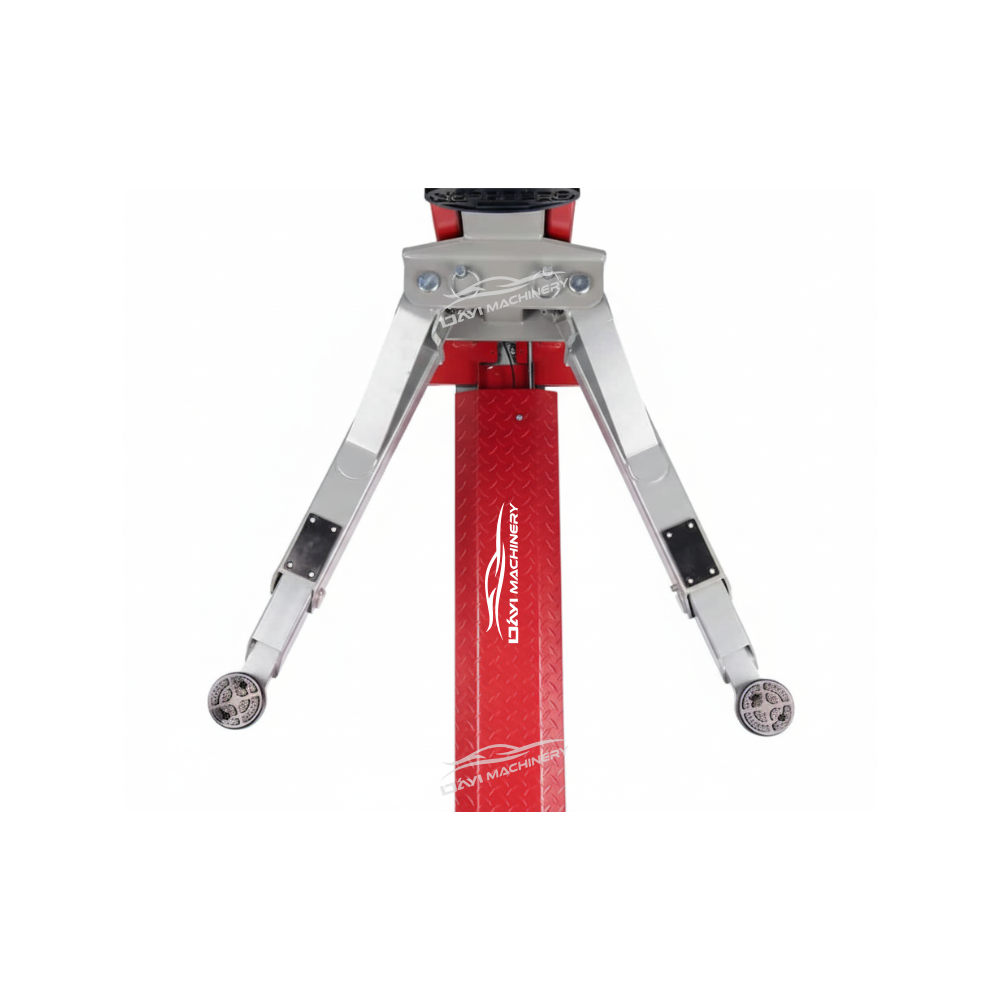

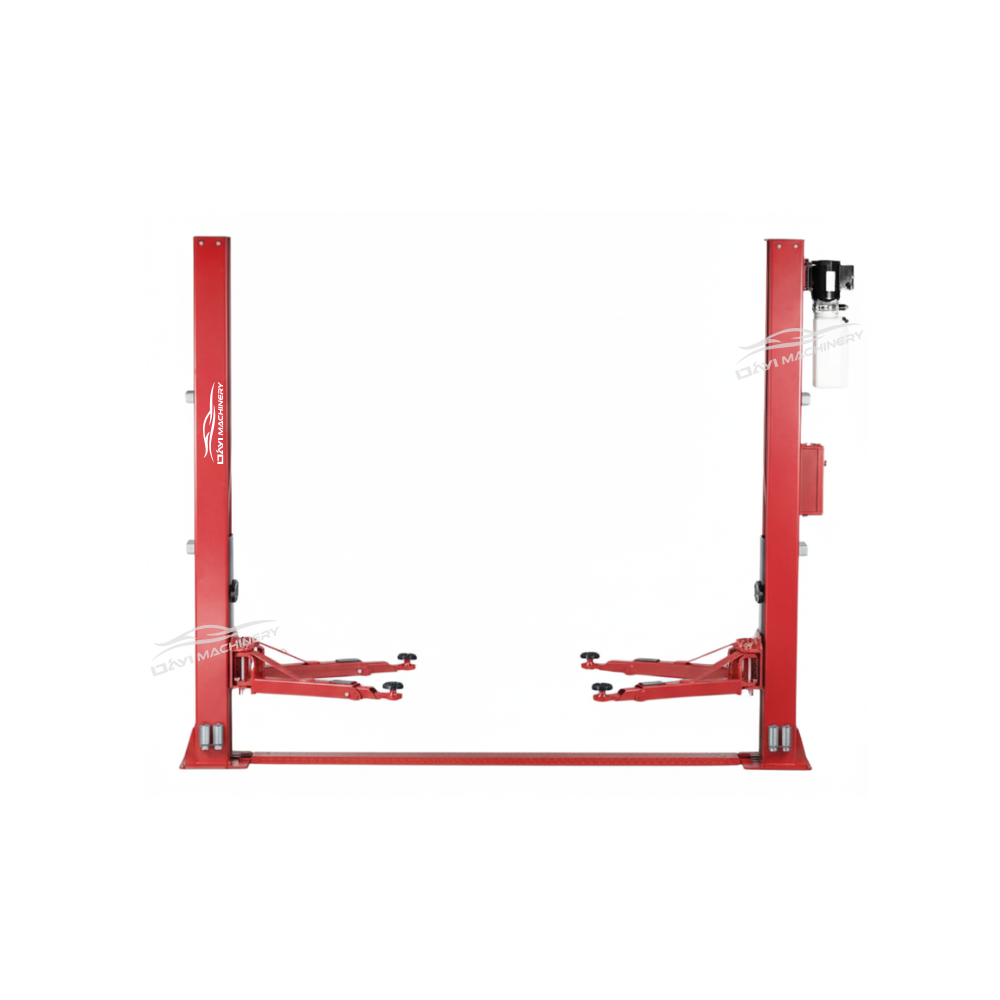

Car Lifter Model: (DY-4T2E-1)
Couldn't load pickup availability
Guaranteed Safe Checkout
| Technical Parameters | Value |
|---|---|
| Lifting Weight | 4000 kg |
| Lifting Height | 1850 mm |
| Minimum Height | 120 mm |
| Overall Height | 2780 mm |
| Overall Width | 3360 mm |
| Width Between Columns | 2760 mm |
| Rise Time | 50 s |
| Descent Time | 40 s |
| Motor Power | 2.2 kW |
| Motor Voltage | 220V / 380V |
| Packing Size | 2880 × 520 × 700 mm |
| Specification | Value |
|---|---|
| Weight | 640 kg |
| Brand | DAYI |
| SKU | DY-4T2E-1 |
| Capacity | 4 ton |
| Lock | Electric Lock |
| Model | Floor Plate |
| Height Overall | 2780 mm |
| Width Overall | 3360 mm |
| Column Inside Width | 2760 mm |
| Lifting Height | 1850 mm |
| Minimum Height | 120 mm |
| Lifting Time | 50 sec |
| Arm Length | 800–1220 mm |
| Arm Type | 2 sections |
| Motor Power | 2.2 KW or 3.8 KW |
| Warranty | 1-year Service Warranty |
**4 TON, ELECTRIC LOCK, 220V
TWO POST LIFT – DAYI DY-4T2E-1**
The DAYI DY-4T2E-1 is a professional two-post lift with lower cable synchronization, designed for efficient servicing of cars and light trucks in workshops and service centers.
Functional
-
Designed for lifting vehicles for maintenance and repair operations.
Advantages
-
Symmetrical tine (arm) design with low lift height
-
High-quality hydraulic cylinders
-
2-piece lifting arms
-
5 mm steel thickness before painting
-
Robotic welded construction for enhanced durability
-
Rubber padding on lifting tines
-
Rubber cable & hose routing duct for longer service life
-
Reinforced carriages and synchronization cables
-
Mechanical locking system with electric lock & manual release
-
Kit includes 100 mm high frame car spacers
-
Includes M20×200 anchor bolts
-
Easy to operate
-

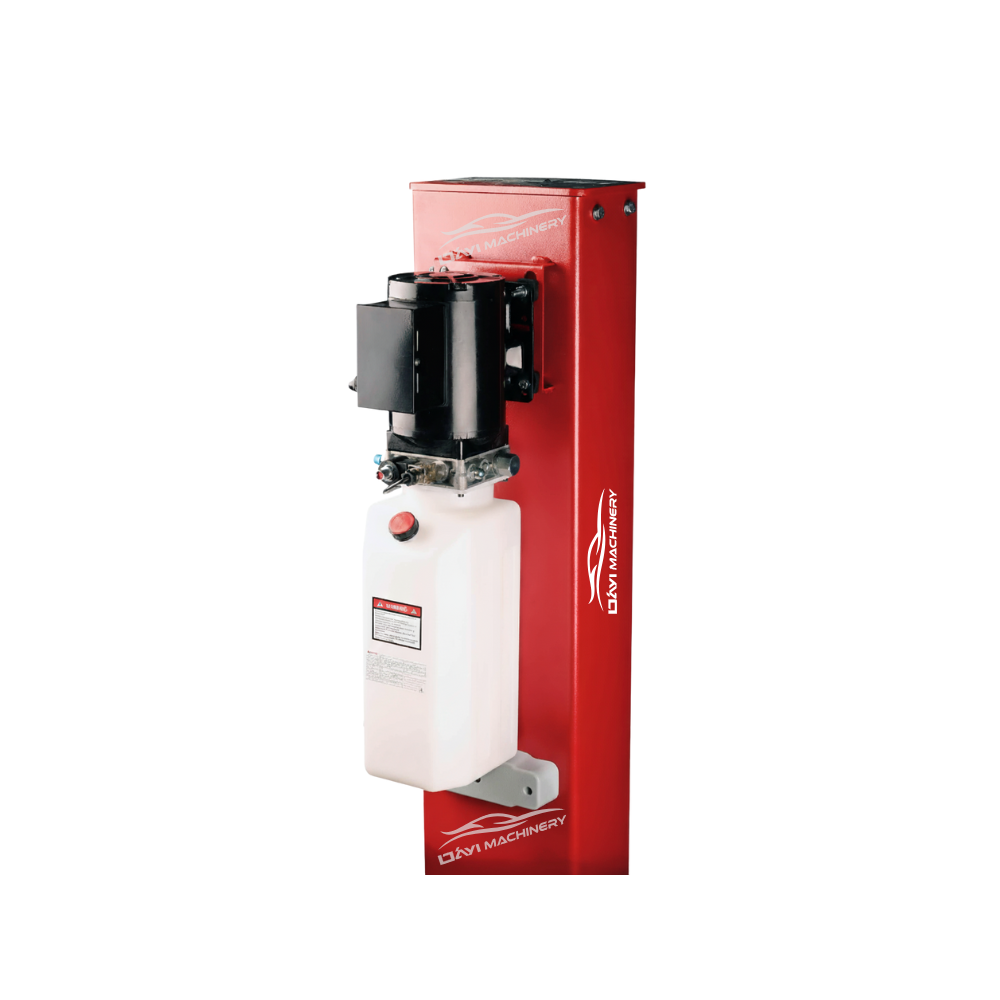

Reliable hydraulic system ensures smooth and safe lifting and lowering
Contents Included
-
DAYI Lift DY-4T2E-1
-
M20×200 anchor bolts
-
100 mm frame car spacers
