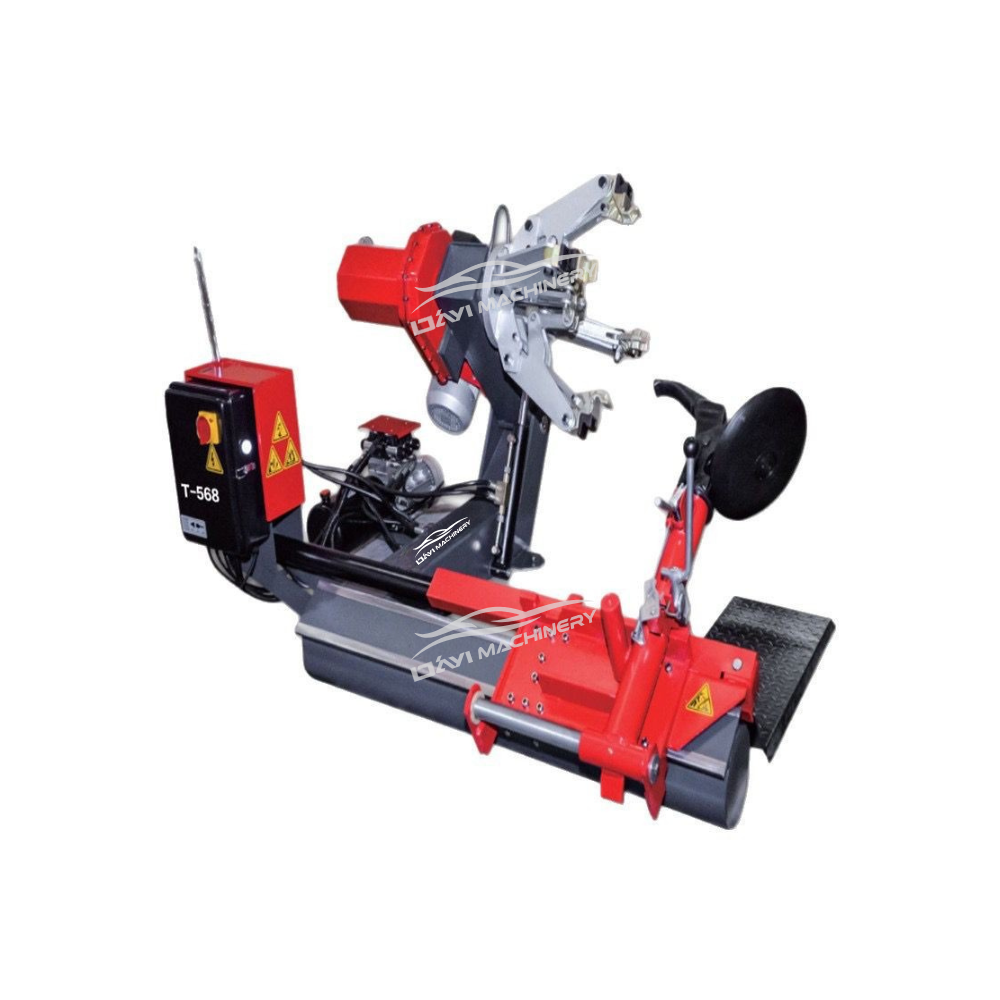

Tire Changer (Model: DY-T568)
Couldn't load pickup availability
Guaranteed Safe Checkout
Technical Parameters
| Specification | Details |
|---|---|
| Model Type | Fully Auto Tire Changer (Car & Truck) |
| Rim Diameter | 14″ – 26″ |
| Max Tire Weight | 500 kg |
| Max Wheel Width | 780 mm |
| Max Wheel Diameter | 1600 mm |
| Hydraulic Pump Motor | 1.5 kW, 380V-3Ph (220V Optional) |
| Gearbox Motor | 2.2 kW, 380V-3Ph (220V Optional) |
| Bead Breaker Force | 2500 kg |
| Max Torque | 6457 N·m |
| Operation Control Voltage | 24V |
| Overall Dimensions | 2500 × 2000 mm |
| Power Supply | 220/400V, 50/60Hz, 1P/3P Optional |
| Net Weight / Gross Weight | 517 kg / 640 kg |
| Package Size | 2030 × 1580 × 1000 mm |
| Package Volume | 3.2 CBM |

Description
-
A heavy-duty, fully automatic tire changer designed for both car and truck tires.
-
Ideal for high-volume workshops, truck service centers, and commercial tire facilities.
-
Minimizes operator effort with smooth, fully automated functions.
⭐ Key Features & Capabilities
Universal Application
-
Suitable for large passenger vehicles, SUVs, commercial trucks, and heavy-duty wheels.
Massive Capacity
-
Max wheel diameter: 1600 mm
-
Max wheel width: 780 mm
-
Max tire weight: 500 kg
Wide Rim Range
-
Supports rim diameters from 14″ to 26″
Heavy-Duty Handling
-
Designed for oversized, heavy tire assemblies
-
Ensures safe and efficient mounting/demounting
Powerful Performance
-
Hydraulic pump motor: 1.5 kW
-
Gearbox motor: 2.2 kW
-
Generates 2500 kg bead-breaker force
-
Delivers 6457 N·m max torque for fast, precise tire service
Flexible Power Options
-
Standard: 380V, 3-phase
-
Optional: 220V for both motors
-
Overall system power choices: 220/400V, 50/60 Hz, 1-phase or 3-phase
