Application: Big Truck & Loader tires, Passenger Car & Truck wheels.
-
Max Wheel Diameter: 2300 mm
-
Max Tire Width: 1050 mm
-
Max Tire Weight: 1600 kg
-
Rim Diameter Range: 14″ – 42″
-
Hydraulic Pump Motor: 2.2 kW (380V 3-phase 50Hz, 220V optional)
-
Gearbox Motor: 2.2 kW (380V 3-phase 50Hz, 220V optional)
-
Bead Breaker Force: 3300 kg
-
Max Torque: 5265 N·m
-
Designed For: High-volume commercial, agricultural, and industrial applications
-
Highlights:
-
Handles extremely large and heavy tires
-
Robust dual-motor system for reliable performance
-
High-force mechanics for the toughest tire beads
-
Built for continuous, heavy-duty operation in large fleet maintenance and commercial tire shops
-
- SKU:
- VENDOR: Dayi Group

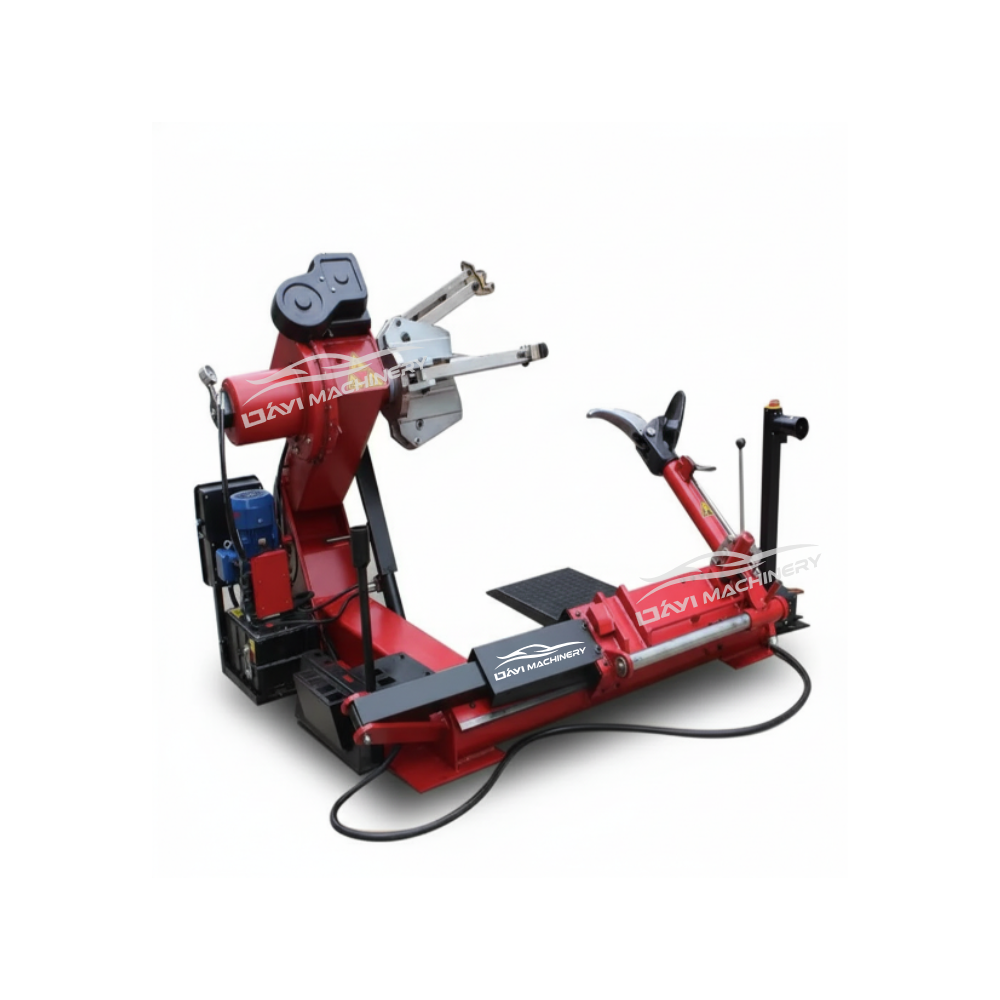

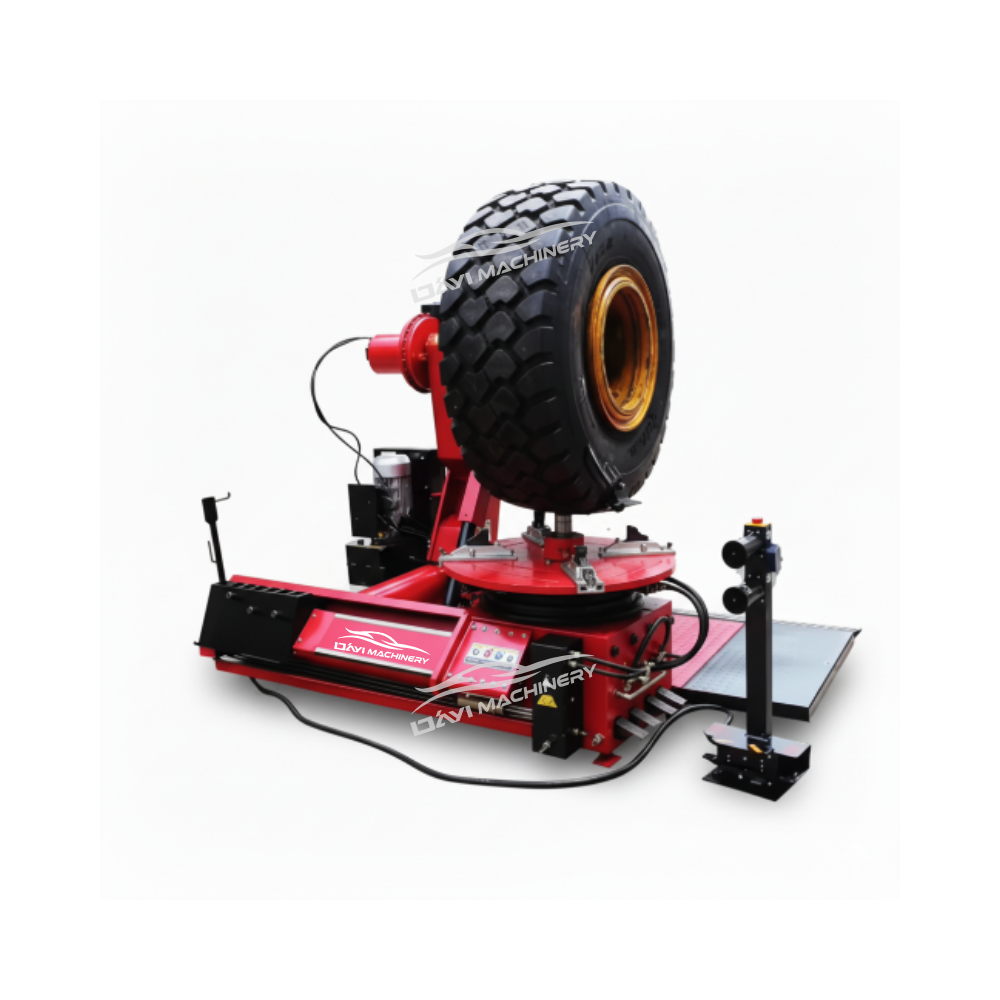

Tire Changer (Model: DY-T598)
Dhs. 16,500.00
In stock!
Couldn't load pickup availability
Guaranteed Safe Checkout
About Product
About Product
Technical Parameters
| Specification | Details |
|---|---|
| Application | Car & Truck |
| Rim Diameter | 14″ – 42″ |
| Max Tire Weight | 1600 kg |
| Max Tire Width | 1050 mm |
| Max Wheel Diameter | 2300 mm |
| Hydraulic Pump Motor | 2.2 kW, 380V 3-Phase 50Hz (220V Optional) |
| Gearbox Motor | 2.2 kW, 380V 3-Phase 50Hz (220V Optional) |
| Operation Control Voltage | 24V |
| Bead Breaker Force | 3300 kg |
| Max Torque | 5265 N·m |
| Overall Dimensions | 2500 × 2000 mm (Approx.) |
| Noise Level | ≤ 70 dB |
| Working Temperature | 0°C ~ 40°C |
| Power Supply | 220/400V, 50/60Hz, 1-Phase / 3-Phase Optional |
| Net Weight / Gross Weight | 758 / 950 kg |
| Package Size | 2130 × 2050 × 1150 mm |
| Package Volume | 5 CBM |
