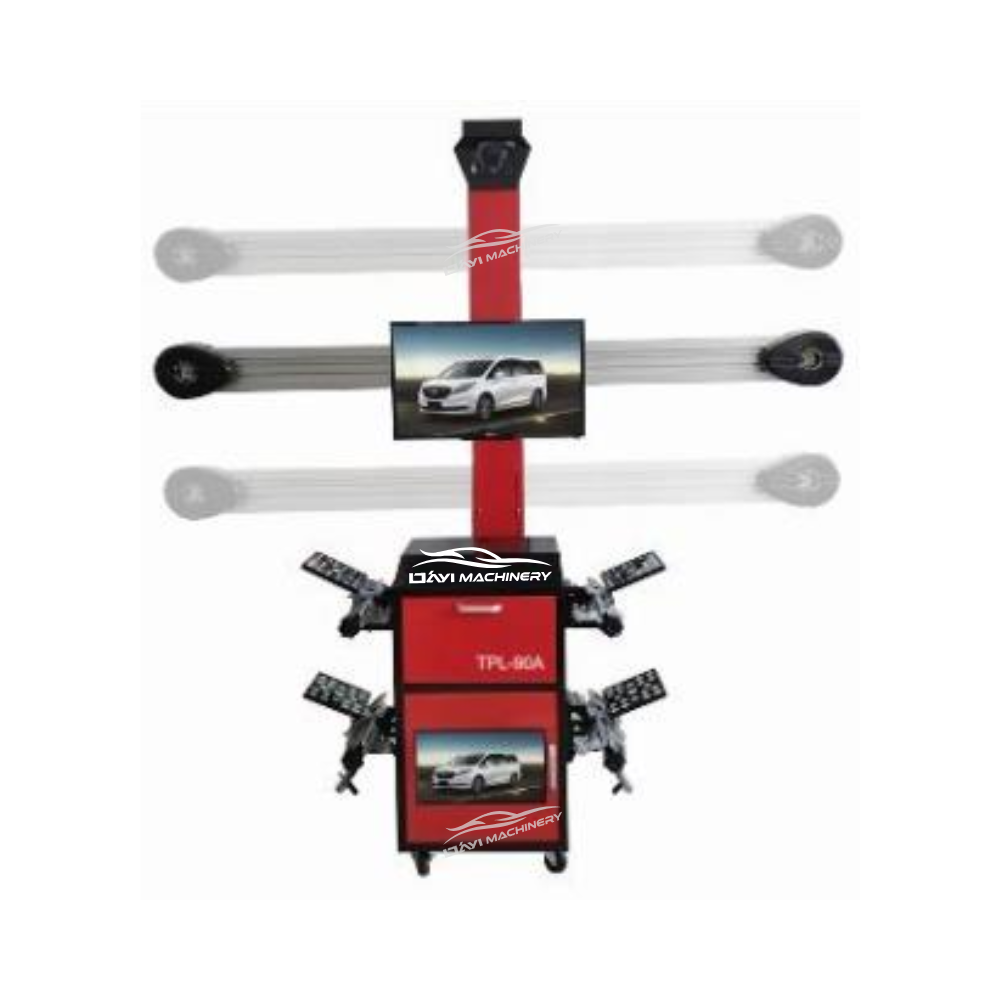

Wheel Alignment (Model DY-90A)

The DY-90A is a high-precision, advanced wheel alignment system designed for professional workshops. It uses cutting-edge 3D imaging technology to deliver fast, accurate, and repeatable results—improving vehicle handling, safety, and tire life.

Key Features & Technology

• 3D Measurement Technology

  • Utilizes high-resolution cameras and reflective targets

  • Generates a precise 3D model of wheel and suspension geometry

  • Measures toe, camber, caster, thrust angle, and more with high accuracy

• Auto-Tracking Beam

  • Camera beam moves automatically up and down

  • Maintains perfect visibility of targets even when the vehicle is lifted

  • Ideal for 2-post lifts and scissor lifts

  • Reduces setup time and improves workflow efficiency

• Wide Compatibility

  • Engineered to work with multiple lift types and workshop layouts

  • Suitable for general maintenance, alignment stations, and diagnostic bays

🖥️ Hardware Specifications

• Cameras:

  • 2 × 5 MP SONY high-definition cameras

• Display System:

  • 24" LCD Monitor × 1

  • 19" LCD Monitor × 1

• Computer:

  • Dedicated workstation for alignment software, data processing, and customer record storage

• Targets:

  • 4 × High-precision patented reflective targets (non-electronic, durable)

🛠️ Standard Components Included

Main Structure

• Support Column × 1

• Beam with Auto-Tracking Cameras × 1

• Movable Cabinet × 1 (houses computer and peripherals)

Accessories

• Turntables × 2 (for steering angle measurement)

• Steering Wheel Holder × 1

• Brake Holder × 1

• Wedge Pads × 2 (prevents vehicle movement)

• Turntable Transition Blocks × 2 (easy vehicle loading onto turntables)
