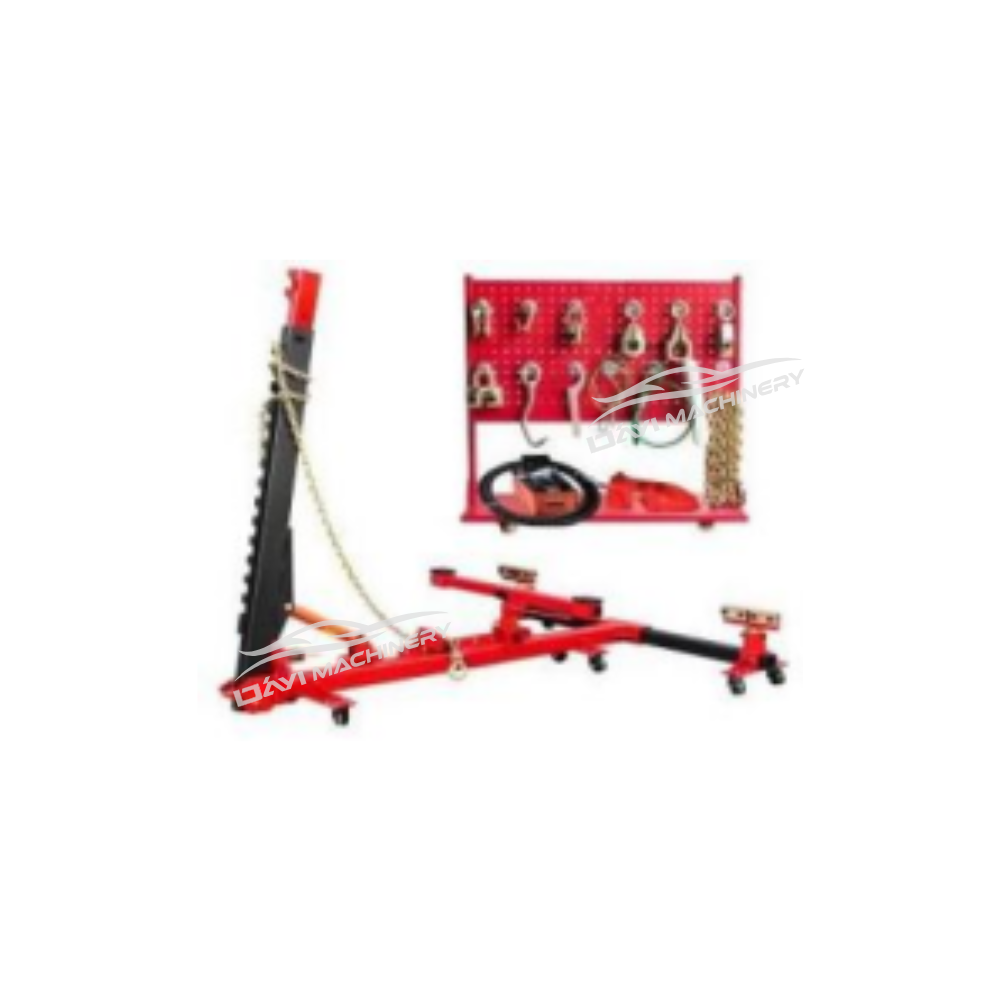

Frame Machine (DY-SGC)

DY-CGS – Overview

• Heavy-duty mobile pulling system for repairing damaged vehicle frames
• Suitable for unibody and chassis alignment after accidents
• Uses a high-pressure hydraulic system to pull metal back to factory position

Key Components

1. Main Pulling Tower (Post)

• Tiltable / pivoting tower for accurate pulling angles
• High-tensile steel chain for strong pulling force
• Multiple pulling points with adjustable height settings

2. Hydraulic Power System

• Air-over-hydraulic foot pump for easy operation
• Converts compressed air into hydraulic pressure
• Equipped with a powerful hydraulic ram (5–10 tons capacity)

3. Anchoring System (Base)

• Adjustable arms extend under the vehicle
• Pinch-weld clamps securely lock the vehicle in place
• Prevents movement during pulling process
• Heavy-duty casters for easy mobility

4. Accessory Kit

• Self-tightening clamps for gripping metal surfaces
• Nylon slings for delicate pulling areas
• Double-claw hooks for multiple pulling connections
